Appendix: Sokrates Configuration File
Configuration File for Individual Projects
Sokrates configuration is defined in a JSON file (see an example here).
You can use the init command to generate default file for your project.
The default location of the configuration file is
Based on this configuration Sokrates will generate a number of reports. The default reports folders is

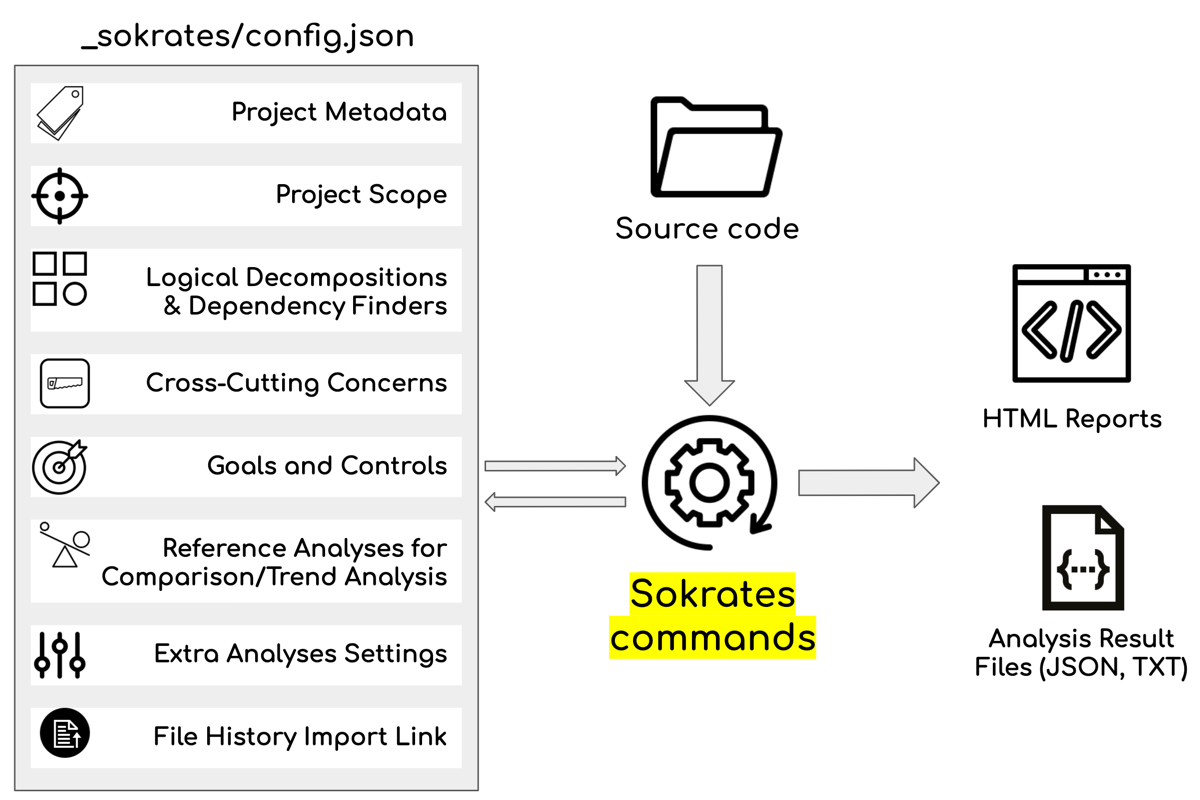

Figure 1: The Sokrates’ configuration file describes how Sokrates should view and analyze the source code..
The configuration file has several sections, you can use to:
- describe your project with a name, logo, summary text, and to add external links
- define the scope, including the location of the source code root, file extensions and files to analyze, ignored files, files classification, defining what is main code, test code, generated code, build & deployment code, or other code…
- identify logical decompositions: one or more ways to looks at components in the system
- define concerns: aspects of a software system that cannot be cleanly decomposed from the rest of the system
- set goals and controls: define measurements and alarms to keep your system within the desired values
- provide analysis reference points: for comparison and trend analysis
- add summary findings: manually added one-line insights and notes
- perform advanced configuration: meta-rules for components, concerns and dependencies
Description of the project
Describes your project with a name, logo, summary text, and to add external links.
"metadata":{
"name":"Sokrates",
"description":"A pragmatic source code analyzer.",
"logoLink":"https://sokrat.org/assets/logo.png",
"links":[
{
"label":"sokrat.org",
"href":"https://sokrat.org/"
}
]
}Define the scope
Defines the scope, including the location of the source code root, file extensions and files to analyze, ignored files, files classification, defining what is main code, test code, generated code, build & deployment code, or other code.
{
"srcRoot":"..",
"extensions":[
"java",
"html",
"xml",
"md",
"txt"
],
"ignore":[
{
"pathPattern":".*/node_modules/.*",
"contentPattern":"",
"include":true,
"note":""
},
{
"pathPattern":".*/target/.*",
"contentPattern":"",
"include":true,
"note":"Compiled files"
}
]
}- For analysis purposes Sokrates separate files in scope into several categories: main, test, generated, deployment and build, and other.
- The main category contains all manually created source code files that are being used in the production.
- Files in the main category are used as input for other analyses: logical decomposition, concerns, duplication, file size, unit size, and conditional complexity.
- Test source code files are used only for testing of the product. These files are normally not deployed to production.
- Build and deployment source code files are used to configure or support build and deployment process.
- Generated source code files are automatically generated files that have not been manually changed after generation.
- While a source code folder may contain a number of files, Sokrates is primarily interested in the source code files that are being written and maintained by developers.
- Files containing binaries, documentation, or third-party libraries, for instance, are excluded from analysis. The exception are third-party libraries that have been changed by developers.
{
"main": {
"name": "main",
"sourceFileFilters": [
{
"pathPattern": ".*",
"contentPattern": "",
"exception": false,
"note": ""
}
],
"files": []
},
"test": {
"name": "test",
"sourceFileFilters": [
{
"pathPattern": ".*/[Tt]est/.*",
"contentPattern": "",
"exception": false,
"note": "Test files"
}
],
"files": []
},
"generated": {
"name": "generated",
"sourceFileFilters": [],
"files": []
},
"buildAndDeployment": {
"name": "build and deployment",
"sourceFileFilters": [],
"files": []
},
"other": {
"name": "other",
"sourceFileFilters": [],
"files": []
}
}Define logical decompositions: one or more ways to looks at components in the system
Identifies logical decompositions: one or more ways to looks at components in the system.
{
"logicalDecompositions":[
{
"name":"primary",
"scope":"main",
"filters":[
],
"componentsFolderDepth":0,
"components":[
{
"name":"Logging",
"sourceFileFilters":[
{
"pathPattern":".*/LoggingService/.*",
"contentPattern":"",
"exception":false,
"note":""
},
{
"pathPattern":".*/LogQueueProbe/.*",
"contentPattern":"",
"exception":false,
"note":""
},
{
"pathPattern":".*/Logging/.*",
"contentPattern":"",
"exception":false,
"note":""
}
],
"files":[
]
}
],
"metaComponents":[
],
"includeRemainingFiles":true,
"dependenciesFinder":{
"useBuiltInDependencyFinders":true,
"rules":[
],
"metaRules":[
]
},
"renderingOptions":{
"orientation":"TB"
},
"includeExternalComponents":true,
"duplicationLinkThreshold":50
}
]
}Define concerns: aspects of a software system that cannot be cleanly decomposed from the rest of the system
Defines concerns: aspects of a software system that cannot be cleanly decomposed from the rest of the system.
{
"concernGroups":[
{
"name":"general",
"concerns":[
{
"name":"exception handling",
"sourceFileFilters":[
{
"pathPattern":".*[.]java",
"contentPattern":".* try \\{.*",
"include":true,
"note":""
}
]
},
{
"name":"logging",
"sourceFileFilters":[
{
"pathPattern":"",
"contentPattern":"import .*logging[.]Log.*",
"include":true,
"note":""
}
]
},
{
"name":"file operations",
"sourceFileFilters":[
{
"pathPattern":"",
"contentPattern":"import .*java[.]io[.]File.*",
"include":true,
"note":""
}
]
},
{
"name":"javafx",
"sourceFileFilters":[
{
"pathPattern":"",
"contentPattern":"import javafx.*",
"include":true,
"note":""
}
]
}
]
}
]
}Set goals and controls: define measurements and alarms to keep your system within the desired values
Sets goals and controls: define measurements and alarms to keep your system within the desired values.
{
"goalsAndControls": [
{
"goal": "Keep the system simple and easy to change",
"description": "Aim at keeping the system size modest (less than 200,000 LOC is good), duplication low (less than 5% is good), files small (no files longer than 1000 LOC is good), and units simple (no units with more than 25 decision points is good).",
"controls": [
{
"metric": "LINES_OF_CODE_MAIN",
"description": "Total number of lines of main code",
"desiredRange": {
"min": "0",
"max": "200000",
"tolerance": "20000"
}
},
{
"metric": "DUPLICATION_PERCENTAGE",
"description": "System duplication",
"desiredRange": {
"min": "0",
"max": "5",
"tolerance": "1"
}
},
{
"metric": "NUMBER_OF_FILES_1001_PLUS",
"description": "The number of very large files",
"desiredRange": {
"min": "0",
"max": "0",
"tolerance": "1"
}
},
{
"metric": "CONDITIONAL_COMPLEXITY_DISTRIBUTION_26_PLUS_COUNT",
"description": "Number of very complex units",
"desiredRange": {
"min": "0",
"max": "0",
"tolerance": "1"
}
}
]
}
]
}Provide analysis reference points: for comparison and trend analysis
Controls enable you to set alarms for any of the Sokrates metrics. An alarm is defined with a desired range and tolerance.
{
"compareResultsWith": [
{
"label": "reference",
"analysisResultsPath": "history/start/analysisResults.json"
}
]
}Add summary findings: manually added one-line insights and notes
Optional few bullets to summarize the systems.
{
"summaryFindings": [
"note 1",
"note 2"
]
}Perform advanced configuration: meta-rules for components, concerns and dependencies
One of the most powerful features of Sokrates is the possibility to use Sokrates String Transformation Language to define meta rules to define components, concerns and dependencies.
A meta rule is a search pattern (content and/or path) combined with the string operations to process found string to get the name that to define a component, concern or a dependency to a component.
Meta rules can be used in logical decompositions (the metaComponents field), dependency finders (the metaRules field), and in concerns (the metaConcerns field)
The following SSTL operations are supported:
- extract (regex1, regex2,…)
- replace (regex, replaceString)
- append (text)
- prepend (text)
- trim
- tolowercase
- touppercase
Example (components and dependencies finder with meta rules):
{
"logicalDecompositions": [
{
"name": "package level",
"scope": "main",
"filters": [],
"componentsFolderDepth": 0,
"components": [],
"metaComponents": [
{
"pathPattern": ".*[.]java",
"contentPattern": "package nl[.]obren[.]sokrates[.].*",
"use": "content",
"ignoreComments": true,
"nameOperations": [
{
"op": "extract",
"params": [
"nl[.]obren[.]sokrates[.][a-zA-Z0-9_]+[.][a-zA-Z0-9_]+"
]
},
{
"op": "replace",
"params": [
"nl[.]obren[.]sokrates[.]",
""
]
}
]
}
],
"includeRemainingFiles": false,
"dependenciesFinder": {
"useBuiltInDependencyFinders": false,
"rules": [],
"metaRules": [
{
"pathPattern": ".*[.]java",
"contentPattern": "import nl[.]obren[.]sokrates[.].*",
"use": "content",
"ignoreComments": true,
"nameOperations": [
{
"op": "extract",
"params": [
"nl[.]obren[.]sokrates[.][a-zA-Z0-9_]+[.][a-zA-Z0-9_]+"
]
},
{
"op": "replace",
"params": [
"nl[.]obren[.]sokrates[.]",
""
]
}
]
}
]
},
"renderingOptions": {
"orientation": "TB"
}
}
]
}Example (concerns with meta rules):
{
"concernGroups": [
{
"name": "java technology",
"concerns": [ ],
"metaConcerns": [
{
"pathPattern": "",
"contentPattern": "import[ ]+java[.].*",
"use": "content",
"ignoreComments": false,
"nameOperations": [
{
"op": "extract",
"params": [
"java[.][a-zA-Z0-9_]+"
]
}
]
}
]
}
]
}
